Grandglow Hot Sale 3KW Off Grid Single Phase 220VAC Hybrid with MPPT Controller Inverter

  • 1 - 19 Pieces
    $426.25
  • >=20 Pieces
    $392.84
Output Power:
3000W
Lead Time:
Quantity(Pieces) 1 - 5 6 - 200 >200
Est. Time(days) 14 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Samples - $426.25 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China
Brand Name:
Grandglow
Model Number:
Grandglow3000-60A
Output Type:
Single
Size:
300x500x595mm
Weight:
58KG
Input Voltage:
Minimum 48VDC
Output Voltage:
220VAC±5%
Type:
DC/AC Inverters
Output Frequency:
50Hz/60Hz
Output Current:
13.6A
Maximum Discharge Current:
81.6A
Input State Grid Voltage:
220VAC
Output Waveform:
Pure sine wave
Conversion Time:
20ms~1s
THD:
<3%
Standby Power:
<20W
Noise:
≤55dB
Inversion Efficiency:
≥85%
Environment Temperature:
-10℃~60℃
Altitude:
≤1000m
Packaging & Delivery
Packaging Details
CTN
Grandglow Hot Sale 3KW Off Grid Single Phase 220VAC Hybrid with MPPT Controller Inverter
Port
FOB Shanghai or any port in China
Lead Time :
Quantity(Pieces) 1 - 5 6 - 200 >200
Est. Time(days) 14 30 To be negotiated

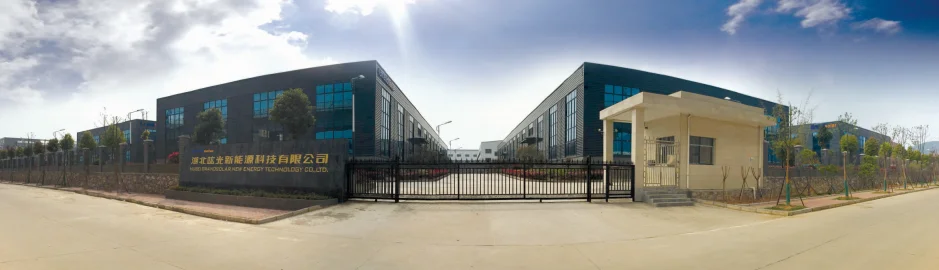

Our Company

How about our company?

GrandGlow is the booming high-Tech company that has been always focusing on researching and developing, manufacturing, selling, also serving customer with the grid tie inverter, off grid inverter, solar pump inverter, wind generator inverter and all other renewable energy products. Besides, we provide project consulting, network design and system solutions for worldwide customers.

Product Description

>Dual CPU single chip intelligent control technology, microcomputer control, humanized design
>Output high quality pure sine wave AC power, with strong load capacity, wide application range
>With perfect protection function, greatly improve product reliability
>Adopt CPU centralized control and SMT technology
>Stable operation, low distortion, no noise, no pollution, strong resistance to load impact, simple operation, long life
>Panel menu LCD/LED display working status
>Three-stage charging function with battery type selection (optional)
>Battery overvoltage, undervoltage protection
>State grid automatic conversion (optional)
>It can automatically resume working after the undervoltage or overvoltage change to normal.
>High conversion efficiency, high instantaneous power and low load loss
>It can achieve the connection of generator and external battery.

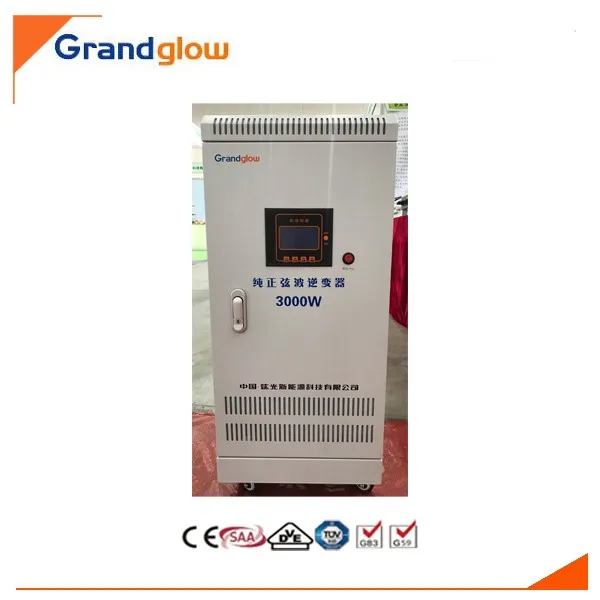

Product Name:Off Grid Single Phase 220VAC 3KW Inverter Hybrid with MPPT Solar Charge Controller

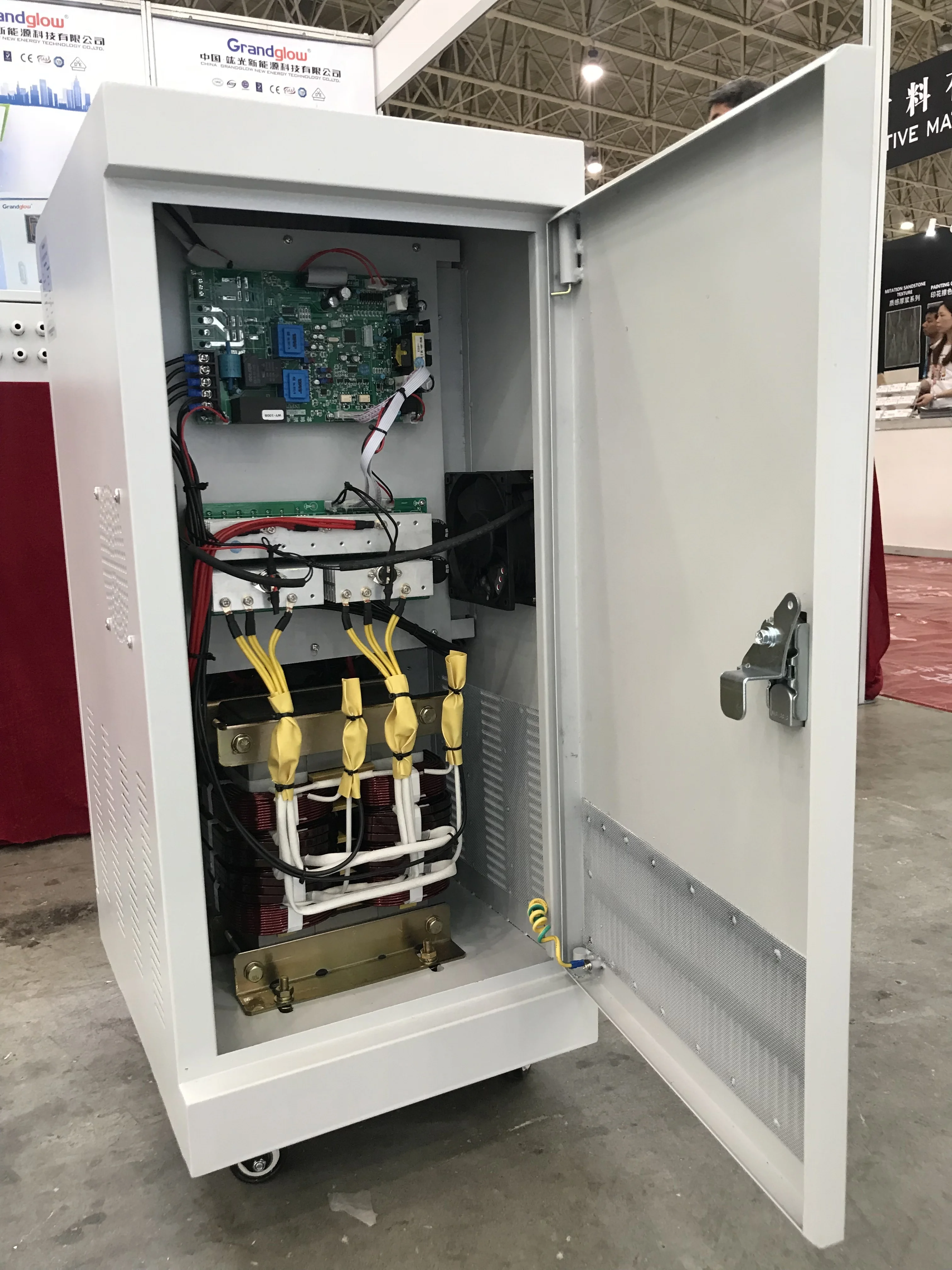

        Front Inside Picture

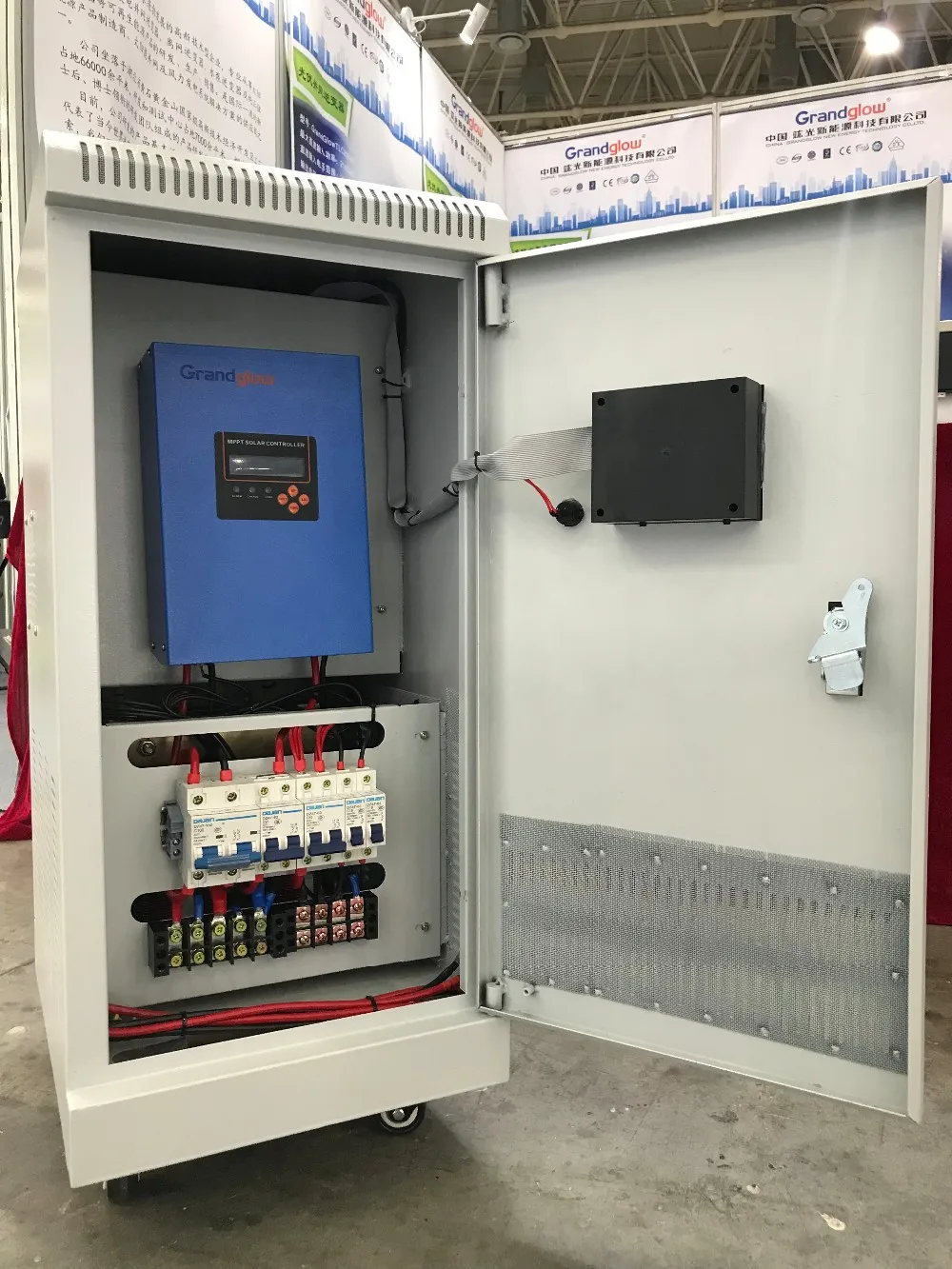

        Back Inside Picture

Peak Overload Capacity
>120%, 10s protection; >150%, 5ms protection
Protective Function
Undervoltage protection of the battery,State grid overvoltage and undervoltage protection,Inverter overload,overvoltage ,Over temperature,Short circuit protection,Automatic recovery after overvoltage and undervoltage changing to normal
Environment Humidity
≤90%RH,no condensation
Charging Current
60A
Packing & Delivery

How we pack our solar inverter?

Packing:1 pcs/carton.bag with outer carton or as customized
Shipping by express,sea or air

Certifications

                                                         International Quality Certification

                                                                        Patents

Exhibitions&Cases

     Overseas Exhibitions Photo-India&Dubai

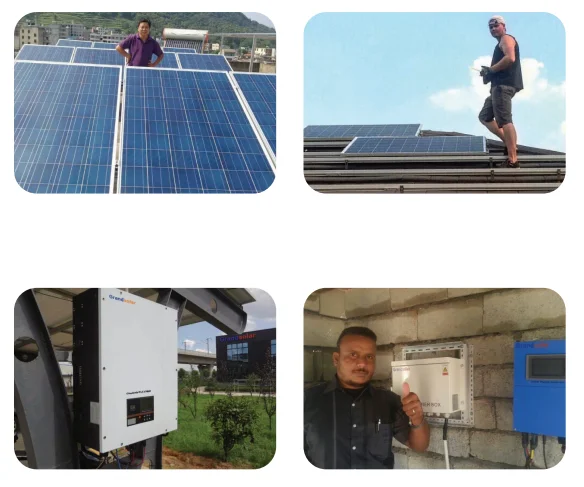

 Successful Cases

FAQ

Q1: How to install the solar system?

A:Tell us your demand,then we will help designing it.

Q2:How about the delivery time?

A:7-30 days after payment.

Q3:What's the warranty about the products?

A:1 Year,can be extended.

Related Products

          On Grid Single Phase Inverter

Off Gird Solar Inverter Single Phase

          Low Frequency UPS Inverter

                    PV Combine Box

Grid Tie Solar Inverter Triple Phase

MPPT Solar Battery Charge Comtraller

Contact Method


278, Zhongshan Avenue, Huangjinshan, Huangshi, Hubei Province, China 435000
Tel:+86-714-6366111
Fax:+86-714-6368000
http://www.grandglow.net/
http://www.buyfar.cn/ebook/hongguangen/
Our company name grandsolar has developed into Grandglow from 2018.
Specialized in solar inverter and related products design for over 10 years
