40KW SOLAR WIND INVERTER 220VAC 380VAC50HZ 60HZ THREE PHASE ON GRID INVERTER WITH TRANSFORMER

FOB Reference Price:Get Latest Price
US $1,500-2,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China (Mainland)
Brand Name:
GRANDGLOW
Model Number:
TLC40000
Specification:
Normal
Application:
Home
Output Voltage (V):
220VAC/240VAC/380VAC/400VAC/415VAC
Load Power (W):
40000W
Solar Power (W):
40000W
Work Time (h):
24 Hours
OUTPUT POWER:
40000W
OUTPUT VOLTAGE:
220VAC/240VAC/380VAC/400VAC/415VAC
OUTPUT FREQUENCY:
50HZ / 60HZ
SOLAR PANEL:
40000W
MPPT VOLTAGE RANGE:
300-800 VDC
PHASE:
THREE PHASE
PROTECTION:
IP65
WARRANTY:
5 YEARS
COMMUNICATION:
RS232C/485
DIAPLAY:
LCD
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
WOODEN CASE
Port
SHANGHAI/NINGBO/SHENZHENG/XIAMEN
Lead Time :
7-21 DAYS

40KW THREE PHASE 220VAC 230VAC 380VAC 400VAC 415VAC 50 60HZ DC TO AC INVERTER ON GRID INVERTER WITH TRANSFORMER

Product Description



Model TLC40000
DC InputMaximum DC Input Power43000W
Maximum DC Input Voltage850V
MPPT Tracking Voltage Range200-820V
Start Voltage300V
AC OutoutPower40000W
Voltage Range3-Phase AC 380V
According to different countries and regions require the adjustment
Rated Voltage RangeAC380V
FrequencyGrid Frequency 50Hz(47-52)
Phase numberThree Phase
Power Factor1
Max Current60A
Current THDAt Rated Power And In The Sine Wave<3.5%
Max Efficiency96.80%
Europe Efficiency96.00%
MPPT Efficiency99.90%
ParametersProtection DegreeIP65/NEMA 4X
Cooling MethodNatural Cooling
Noise<50dB
Data InterfacesRS 485/ RS 232/ (Standard), WiFi Modular/ Ethernet(Optional)
Warranty Period5 Years
ProtectionProtection (Inverter)Input Overvoltage, Output Short Circuit, Overload, Overheat
Protection (Grid)Anti-islanding, over/under voltage of grid, over/under frequency of grid.
EnvironmentOperation temperature RangeAir Circulation, -10 ℃ ~40 ℃ ( 50 ℃ )
Stored temperature-20 ℃ ~ 65 ℃
Relative humidity0~100% (Do not wet with dew)
EnvironmentHave No Corrosion Gas, Flammable Gas, Oil Mist, Dust Etc
Standby Power Consumption0W
Reminder: Other specifications of the product can be customized according to customer requirements!



> High conversion efficiency
> Advanced technology for maximum power point tracking(MPPT)
> MPPT efficiency>97%
> Wide input voltage range
> Low frequency transformer isolation
> High reliability due to perfect protection function
> Powerful communication interfaces
> Easy operation and installation
> Designed to suitable for critical grid environment
> Easy to set multilingual LCD display

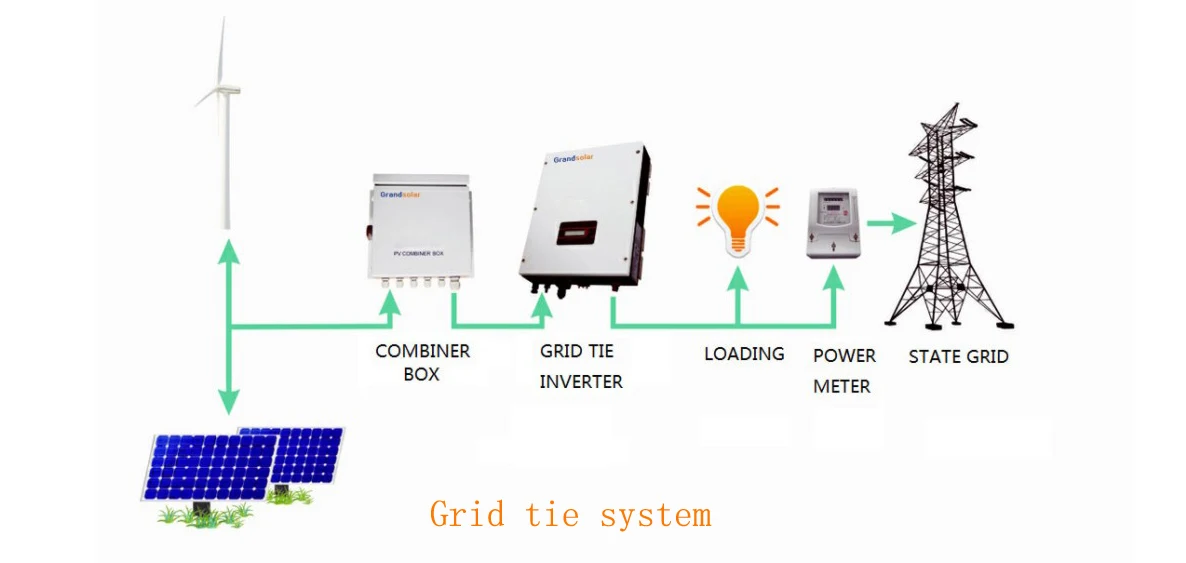

On grid.jpg
